PRODUCT DESCRIPTION

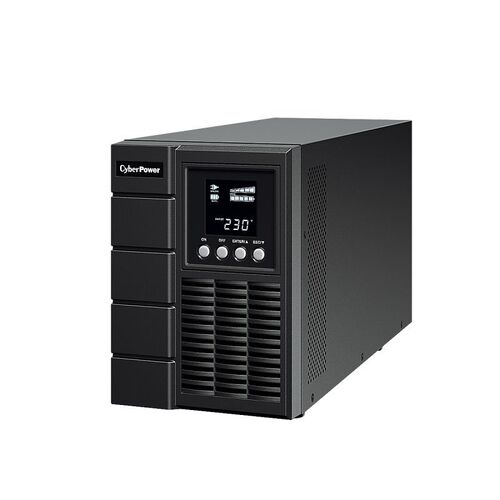

CyberPower OLS1000E is a high-performance UPS featuring online double-conversion topology, providing seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance, transportation, and emergency systems.
CyberPower OLS1000E is a high-performance UPS featuring online double-conversion topology, providing seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance, transportation, and emergency systems.
Specifications:
- Phase: Single Phase
- Form Factor: Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 95%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage ( Vac ): 230 ± 10%
- Input Voltage Range ( Vac ): 160 - 300
- Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac
- Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
- Input Frequency Detection: Auto-sensing
- Rated Input Current ( A ): 4.5
- Input Power Factor: 0.98
- Input Connector Type: IEC C14
- Power Cord Length (m.): 1.8
- Output Capacity (Watts): 900
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1%
- Output Voltage Setting: Configurable
- On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
- Output Frequency Setting: Configurable
- Power Factor: 0.9
- ECO Mode Voltage Tolerance: ± 15 %
- Overload Protection: Internal Current Limiting Circuit Breaker Fuse
- Overload Protection (Line Mode): 110-120% Load for 1 min >120% Load Immediately
- Overload Protection (Battery Mode): 110-120% Load for 10 sec >120% Load Immediately
- Overload Protection (Bypass Mode): >130% Load Immediately
- Crest Factor: 3 : 1
- Harmonic Distortion (Linear Load): THD?3%
- Harmonic Distortion (Non-linear Load): THD?5%
- Internal Bypass: Automatic Bypass Manual Bypass
- Outlet(s) - Total: 4
- Outlet Type: IEC C13 x 4
- Outlet(s) - Battery & Surge Protected: 4
- Typical Transfer Time ( ms ): 0
- Runtime at Half Load ( min ): 15
- Runtime at Full Load ( min ): 5
- Typical Recharge Time ( Hours ): 5
- Maximum Charging Current ( A ): 1
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable: No
- Battery Type: Sealed Lead-acid
- Compatible Extended Battery Module (EBM): BPSE36V45A
- Max. EBM Quantity ( pcs ): 3
- Surge Suppression ( Joules ): 440
- EMI/RFI Filtration: Yes
- Phone/Network Protection RJ11/RJ45 (Combo): 1-in 1-out
- LCD Information Display: Operation Type Power Status Battery Status Load Status Fault & Warning Other Information Event & Log
- LCD Setting & Control: Mode Setting Alarm Setting Input & Output Battery Setting
- HID Compliant USB Port(s): 1
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode Low Battery Overload Overcharge Overheat UPS Fault Replace Battery
- Management Cable ( pcs ): Power Cord x2 USB Cable x1 Phone Line x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- Enclosure Construction: Metal
- Dimensions: 151 x 225 x 394mm
- Weight: 13.1kg
- Certifications: CE RCM
Features:
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel Management Software
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
