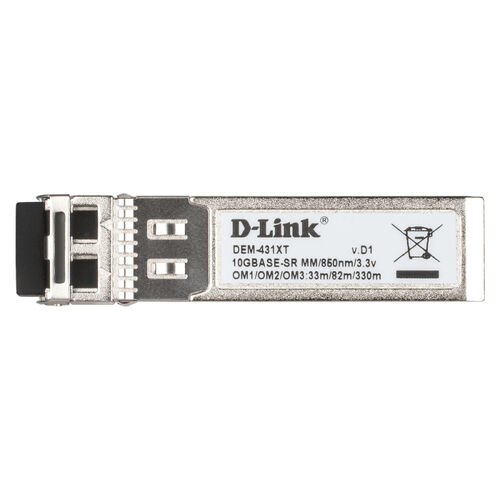

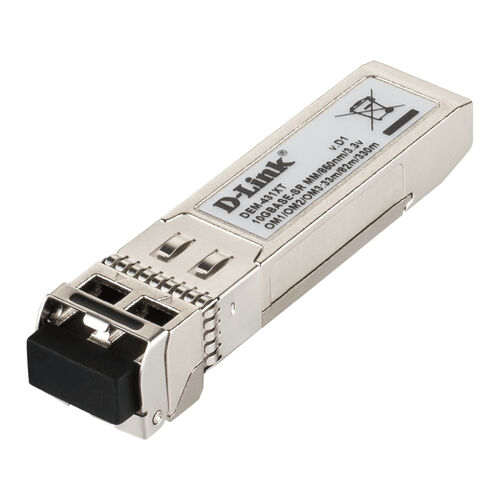

D-Link 10GBase-SR SFP+ Multimode Transceiver (300m)
| Brand: | D-Link |
| Model: | DEM-431XT |
| Type: | Transceiver |
| Condition: | New |
D-Link's 10G SFP+ Module series are hot-swappable, 10GBASE SFP+ Module Series transceivers offer a wide variety of 10G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications.
Specifications:
- Standard Compliance: IEEE-802.3ae 10GBASE-SR
- Form Factor Type: SFP+
- Fibre Channel FC-PI: Standard 1200-Mx-SN-I
- Fiber Media Support: Multi-Mode
- Distance Capacity: 62.5 ?m 160 MHz-km: 26 m 62.5 ?m OM1 200 MHz-km: 33 m 50 ?m 400 MHz-km: 66 m 50 ?m OM2 500 MHz-km: 82 m 50 ?m OM3 2000 MHz-km: 300 m
- Hot Pluggable: Yes
- Compliant: MSA RoHS
- Speed: 10 Gbps
- Connector: Duplex LC Connector
- Wavelength: 850 nm
- Output Optical Power (TX Optical Power): Max.: -1 dBm Min.: -6.5 dBm
- Input Optical Power (RX Optical Power): Max.: -1 dBm Min.: -11.1 dBm
- Sensitivity: -11.1 dBm
- Cable Type: Multi-mode 50/125 um or 62.5/125 um fibre
- Power: 3.3 V
- Heat Generated: 3.6 kJ/h
- MTBF (Hours): 3960000
- Operating Temperature: 0 to 70 C
- Storage Temperature: -40 to 85 C
- Operating Humidity: 5 to 85%
- Storage Humidity: 5 to 95%
- Dimensions: 14.8 x 56.5 x 11.85 mm
- Weight: 18 g
- Bail Latch Color: Beige
- EMI: CE FCC VCCI
- Safety: UL TUV CDRH
Features:
- Enhanced Small Form-Pluggable (SFP+) form factor
- Hot pluggable
- Support 10G Ethernet
- Feature Digital Diagnostics Monitoring (DDM)1
- RoHS Compliant
- Compliant with MSA (Multiple Source Agreement)
- Compliant with IEEE802.3ae and 802.3aq standards
