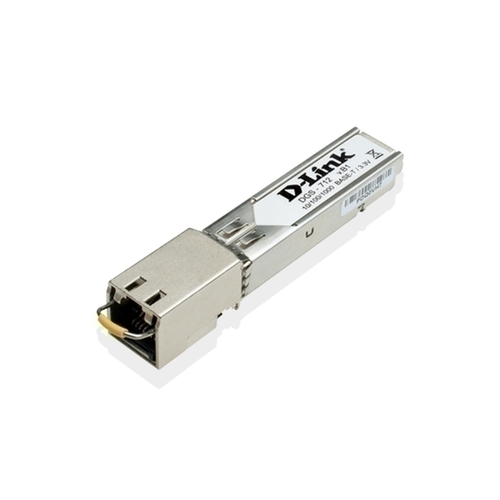

1000Base-TX RJ45 SFP Transceiver - 100m
Specifications:
- Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- Transceiver Type: SFP (Small Form Pluggable)
- Connector: RJ-45
- Auto MDI/MDIX: Automatic crossover detection enabled External crossover cable not required
- Data Rate: 1000 Mbps (IEEE 802.3 compatible) 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface this transceiver will operate at 1000BASE-T only
- Cable Type: Cat. 5 twisted-pair cable
- Maximum Cable Distance Coverage: 100 meters
- Supply Current: 350mA (typical) 400mA (maximum) 1.3W max power over full range of voltage and temperature *
- Input Voltage: 3.1V (minimum) 3.3V (typical) 3.5V (maximum) Referenced to GND
- Maximum Voltage: 4V
- Surge Current: 30mA Hot-plug above steady state current *
- Operating Temperature: 0 to 85 C
- Storage Temperature: -40 to 85 C
Features
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Extended case temperature range
- Fully metallic enclosure for low EMI
- Low power dissipation (typical 1.2 watts)
- RJ-45 connector assembly
- Access to physical layer IC via 2-wire serial bus
- 10/100/1000 BASE-T operation in host systems with
- SGMII interface
- Gigabit Ethernet over Cat. 5 cable
- +3.3V electrical power interface
DELIVERY INFORMATION
All orders are despatched ASAP from distribution centres in Sydney, Melbourne, Brisbane, Adelaide & Perth. As a general guide, deliveries to major cities and towns will arrive in 1 - 3 working days whilst it could take up to 5 working days for remote areas. A dispatch note will be sent to your registered email address for tracking. The store pickup is not allowed.
PAYMENT OPTION
We accept payment by Visa, Mastercard, American Express, Paypal, Direct Bank Deposit, Internet Banking and Cheque. Our site uses 256bit encryption ensuring your credit card details remain safe. The credit card details are used for the current order processing only and are not stored on our site in any form.
QUALITY GUARANTEE
This product is supplied with the manufacturer's warranty. The major manufacturers provide the 'Technical Support' lines for troubleshooting or technical support and will deal the Manufacturer's Warranty Claim for the repair or replacement. If the manufacturer directs you to return the product back to us, please ask for a support case number and we will arrange the return. Please contact us if you are unsure of what number to call.
ORDER IT NOW!
Click the "Add to Cart" button above to add the item to your shopping cart.
| Brand: | D-Link |
| Model: | DGS-712 |
| Type: | Transceiver |
| Condition: | New |
